Size: 8.3"(210mm)
*Toot 200A/200AR/200/200R design with 10 position punches.

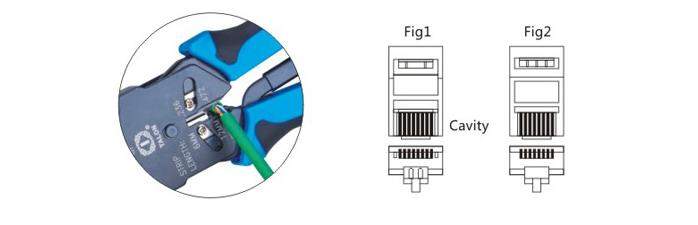

For crimping 8P8C plug,please use AMP 8P8C plug
with 2 extra cavities on. each side as Fig.1.
*Tool 2008A/2008AR/2008/2008R design with 10 position punches.
For crimping the ordinary 8P8C plug. this kind of 8P plug
without additional cavity on each side as Fig.1.
*Adjusting the 6P guide: use a flat(slot) screw driver to set
the guide to right side for crimping
normal 6P plug and set the guide
to left side for crimping DEC plug
*Built-in round cable stripper
| TL- | For crimping modular plug | RATCHET |
| 200/200A | 10P10C,AMP 8P8C/RJ-45,6P6C/RJ-12,6P4C/RJ-11,4P4C & 4P2C PLUGS & DEC/OFF SET PLUG-6P6C | No |
| 200R/200AR | Yes |
| 2008/2008A | 8P8C/RJ-45,6P6C/RJ-12,6P4C/RJ-11,4P4C & 4P2C PLUGS & DEC/OFF SET PLUG-6P6C | No |
| 2008R/2008AR | Yes |
Replacement blade: TL-RB0809C
Use with TL-S501A/TL-S501B for stripping UTP/STP round with.(Page8)
